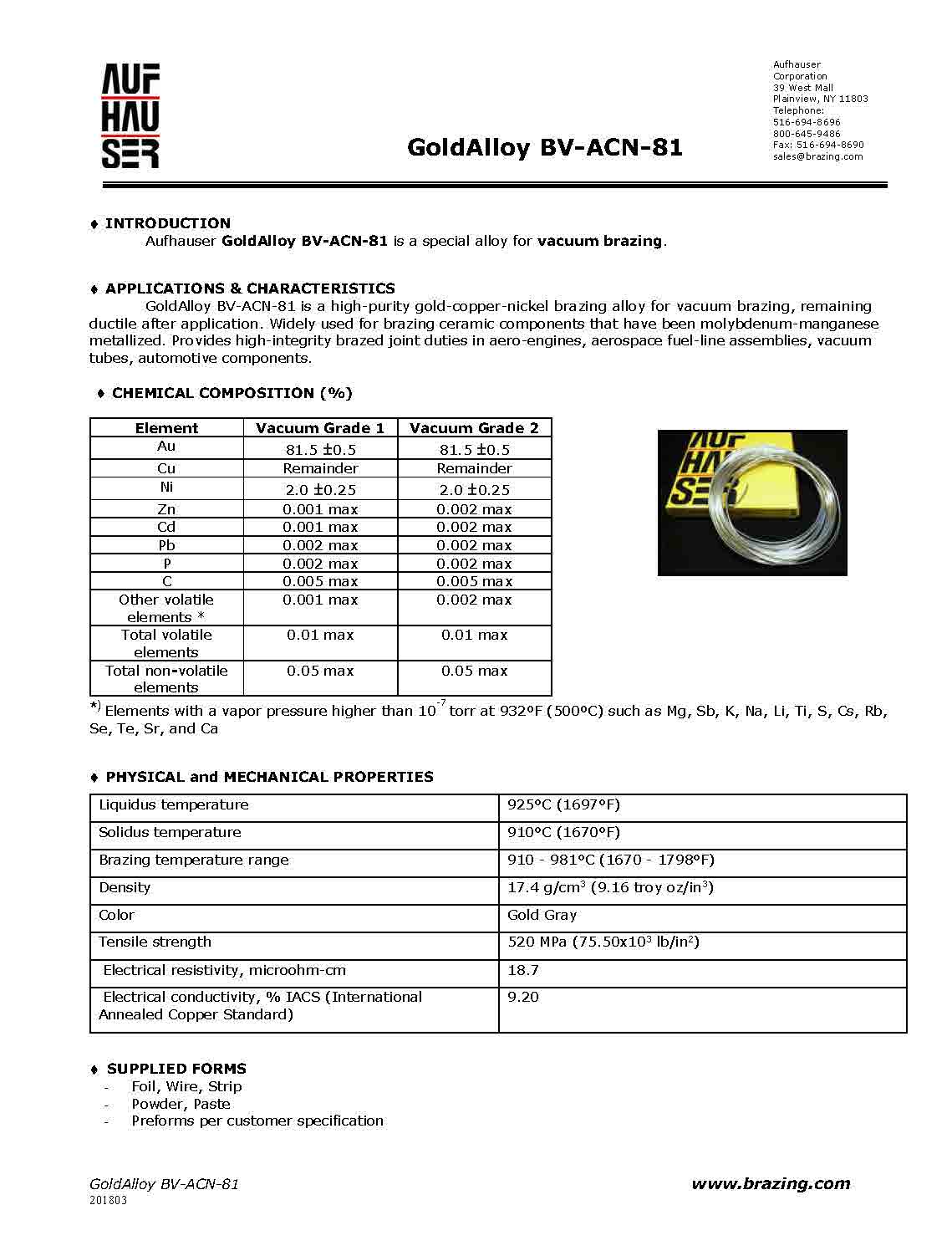

GoldAlloy BV-ACN-81


INTRODUCTION

Aufhauser GoldAlloy BV-ACN-81 is a special alloy for vacuum brazing.

APPLICATIONS

GoldAlloy BV-ACN-81 is a high-purity gold-copper-nickel brazing alloy for vacuum brazing, remaining ductile after application. Widely used for brazing ceramic components that have been molybdenum-manganese metallized. Provides high-integrity brazed joint duties in aero-engines, aerospace fuel-line assemblies, vacuum tubes, automotive components.


GENERAL INFORMATION

Chemical Composition, Grade 1 (Grade 2)
Au Cu Ni Zn Cd Pb P C Other volatile
elements *
81.5 ± 0.5 Remainder 2.0 ± 0.25 < 0.001
(< 0.002)
< 0.001
(< 0.002)
< 0.002
(< 0.002)
< 0.002
(< 0.002)
< 0.005
(< 0.005)
< 0.001
(< 0.002)

Total volatile elements 0.01 max. Total non-volatile elements 0.05 max. (*) Elements with a vapor pressure higher than 10-7 torr at 932°F (500°C) such as Mg, Sb, K, Na, Li, Ti, S, Cs, Rb, Se, Te, Sr, and Ca.

ADDITIONAL INFORMATION

PHYSICAL and MECHANICAL PROPERTIES
Solidus (Melting point) 1670°F (910°C)
Liquidus (Flow point) 1697°F (925°C)
Brazing temperature range 1670-1798°F (910-981°C)
Density 17.4 g/cm³ (9.16 troy oz/in³)
Tensile strength 520 MPa (75.5 x 103 lb/in2)
Electrical Conductivity, % IACS 9.20
Electrical Resistivity, microhm-cm 18.7
Color Gold gray

AVAILABLE FORMS
Powder, Paste
Foil, Wire, Strip
Specialty preforms per customer specifications
